DESCRIPTION

Basic Info

Model NO.	N30-N52
Application	Industrial Magnet
Shape	Trap
Coating	304,316 Stainless Steel
Grade	N35-N54-36H
Surface Gauss	8000-13000gauss
Surface Treatment	Polishing and Sand Blasting
Material	S304 or S316 Stainless Steel Tube NdFeB Magnet
Operating Temperature	80c ,100c,120c,150c,
Transport Package	Neutral Packing for Export
Specification	Dia100mm-Dia219mm
Trademark	HAWELL
Origin	China
HS Code	8505111000
Production Capacity	10000PCS/Year

Product Description

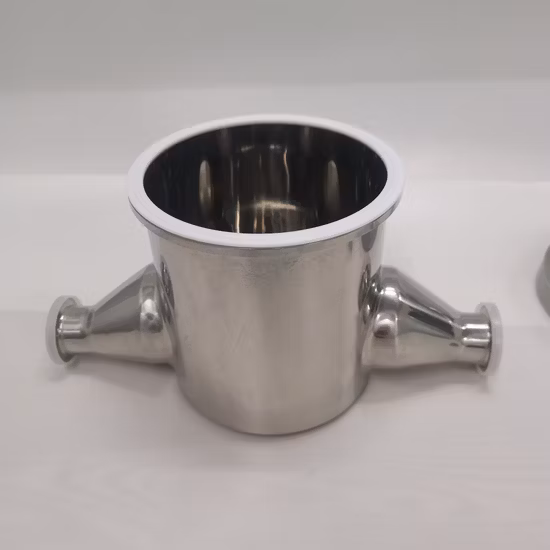

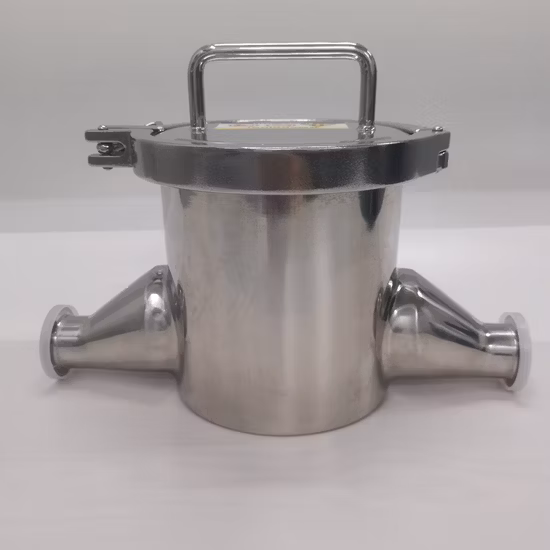

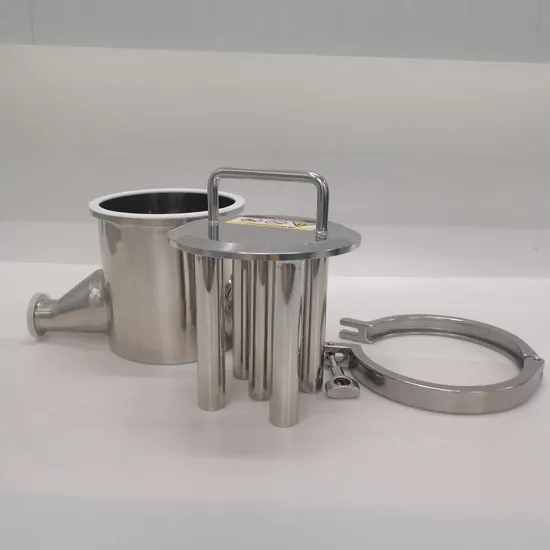

Magnetic Filter (Magnetic Liquid Traps) consist of a group of magnetic grates and stainless steel housing outside. An inlet and
outlet makes it possible to connect with existing processing line by various connection types. Magnetic Liquid Traps are designed
to extract the ferrous material from the liquid, semi-liquid and air conveying powder in order to purify the material in the
production process. Strong magnetic tubes inside the housing filtrates the flow and picks out the unwanted ferrous metal. The unit

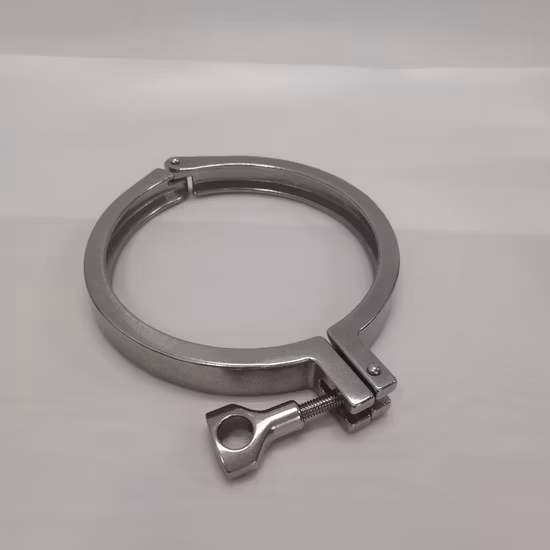

is simply mounted to the existing pipeline via flanged or threaded ends. Easy access is also possible using the quick release
clamp.

Item Name	Magnetic Filter (Magnetic Liquid Traps)
Material	S304 or S316 stainless steel tube NdFeB magnet
Size	2.5inch or customized
Surface Gauss	10000gauss ,12000gauss,13000gauss
MOQ	1pcs
Sample	Available
Sample Lead Time	5-10 Days
Payment Terms	T/T, L/C, Paypal, WU, E-checking, VISA, Master Card...
Advantage	Super magnetic force, No pollution, Small resistance
Characteristic	Corrosion-resistant, high temperature
Production Time	5-25 DAYS(Depends on size and quantity)
Delivery Port	NINGBO
Features	1. Standard round bar has a length of 25 mm(1 inch) diameter. As required, it can reach the maximum length of 2500mm. Magnetic tube or other different shape and dimension are also available.
	2. 304 or 316L stainless steel are available for pipeline material which can be fine polished and meet the standard of food or pharmacy industry.
	3. Standard working temperature≤80ºC, and maximum working temperature can reach 350ºC as required.
	4. Various kinds of ends like nail head, thread hole, double screw bolt are also available.
	5. Different kinds of magnet like ferrum magnet or other rare earth magnets are available to meet every customer's requirement. The maximum magnetic strength of 25mm (1 inch) diameter can reach 13,000GS (1.3T)
Application	Plastics, food, environmental protection, filtration, chemical, power, building materials, building ceramics, medicine, powder, mining, coal and other industries.



Specification	Size (mm)					No. of rods	Weight
	D	d	Φ	H	L
FT100/25CC	101.6	25.4	50.5	150	220	3	4.4
FT100/38CC	101.6	38.1	50.5	150	220	3	4.4
FT100/50CC	101.6	50.8	64	150	220	3	4.4
FT100/63.5CC	101.6	63.5	77.5	150	220	3	4.5
FT100/76CC	101.6	76.2	91	150	220	3	4.5
FT114/25CC	114.3	25.4	50.5	150	250	5	6.1
FT114/38CC	114.3	38.1	50.5	150	250	5	6
FT114/50CC	114.3	50.8	64	150	250	5	6.1
FT114/63.5CC	114.3	63.5	77.5	150	250	5	6.2
FT114/76CC	114.3	76.2	91	150	250	5	6.3
FT150/25CC	159	25.4	50.5	159	300	5	9.5
FT150/38CC	159	38.1	50.5	159	300	5	9.5
FT150/50CC	159	50.8	64	159	300	5	9.5
FT150/63.5CC	159	63.5	77.5	159	300	5	9.6
FT150/76CC	159	76.2	91	159	300	5	9.6
FT150/100CC	159	101.6	119	159	300	5	11
FT200/25CC	219	25.4	50.5	200	360	7	15.5
FT200/38CC	219	38.1	50.5	200	360	7	15.5
FT200/50CC	219	50.8	64	200	360	7	15.6
FT200/63.5CC	219	63.5	77.5	200	360	7	15.6
FT200/76CC	219	76.2	91	200	360	7	15.6
FT200/100CC	219	101.6	119	200	360	7	15.8
