DESCRIPTION

Basic Info

Type	Separating Plant
Object	Powder Material
Separation Mode	Magnetic Separator
Operating Type	Continuous Type
Installation	Horizontal
Centrifuge Type	Eddy Current Separator
Distillation Equipment Type	Aluminum Currenty Separator
Extraction Tower Type	Eddy Current Separator
Pressure	Medium Pressure
Condition	New
Another Name	Powder Magnetic Grate/Sieve Separator
Intensity	12000GS for Lattice Magnets
Lattices Magnetic Source	NdFeB/Rare Earth Magnets
Lattice Magnets Application	Efficient Fine Iron and Ferromagnetic Contaminatio
Magnetic Purification Materials	Dry Free Flowing Powder, Grain, Granule Materials
Customized	Customized
Material	Stainless Steel
Application	Ferrous Separation Lattices
Transport Package	Usually Packing in Nude in Container with Waterp
Specification	rare earth/NdFeB lattice magnets
Trademark	EJET
Origin	Liaoning Province, China
Production Capacity	50set/Month

Product Description

rare earth/NdFeB powerful lattices magnetic separator Product Description

The Magnetic lattices/sieves for efficient fine iron and ferromagnetic contamination removing from a range of dry free flowing powdery, grains, granule products. It can be used in production lines of sugar, grain, tea, ceramics, chemicals, pharmacy, food, plastic, rubber, dyestuff, mining etc.The Normal lattices magnets offers maximum magnetic strength of 12000Gs and Easy-cleaning magnetic drawer offers maximum magnetic strength of 10000Gs.The unit comes in varying in dimensions, weight and applications,offers many features like square chutes and round pipelines flange options, stainless steel housing and magnetic tube, maximum working temperature from -80 °C to200°C , magnetic grid with one / two / more rows etc.

There are vairous outline shapes and handling capacity for your choice.

magnet bars with threading hole	magnetic bars with threading peg	bars magnet with accessory	square version magnet

Features for magnetic lattices/sieve separator :

• High-Intensity Rare Earth/NdFeB magnets,magnetic holding force could be over 12000 gauss.
• In a heavy-duty frame designed to easily fit into any existing chute work,are constructed of durable food grade 304 stainless steel.
• Easy to install and clean.the frame comes with flanges at top and bottom for easy positioning and a quick-release swing bolt that provides access for cleaning purposes.
• All kinds of sizes could be designed as required.

Working principle for magnetic separation lattices separator

The Easy-clean in housing magnetic lattices separators offer retractable magnets placed inside sheaths,far easier way to clean just requiring very low downtimes. The magnets are inserted when the contaminants are to be collected and withdrawn at the disposal station, wherein the iron filings fall off. The magnets of Mega rare-earth magnetic strength work good for extreme ferrous contamination.(just like the below pictures)

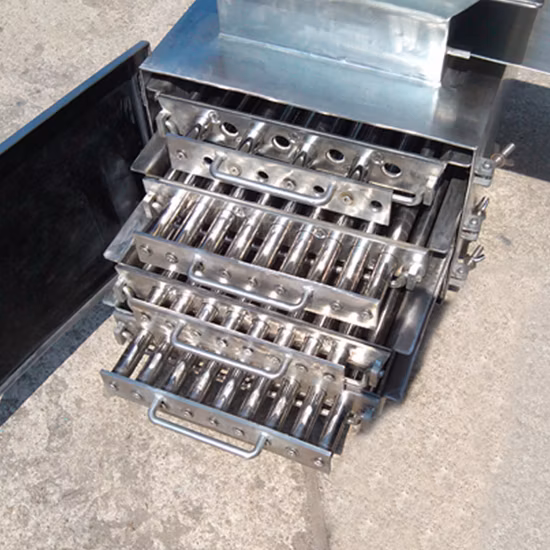

similar Grate/Lattices magnets separators display

Packaging & Shipping for powerful magnetic lattices:Our Services

As a professional automation and separating systems manufactures for more than 10years,honesty, reliability, commitment and competence are our unchanged values.

Thanks to the superior suppliers (Nord,Simens &Schneider) ,well-equipped professional engineers and strong technical force, we keep our consistent high quality.

strict quality checked for every machine before packing, engineers available to service machinery overseas, inaddition, there is not only after sales service support, but also technology support, "keep improing, persuing excellence" would be keep forever.

In order to give you the responsible quotation, pls kindly inform us the following details:

1. What kind of material you are going to deal with?2.What's the size of the materials?3. What's the producing capacity you are going to achieve?

Other products
we can design and manufacture complete magnetic metal separation systems or simply furnish eddy current non magnetic metals separator or any other piece of magnetic metals filters to meet your requirements.such as:

• Suspended over-belt electromagnetic filter
• Over-belt suspending magnetic filter
• Magnetic block
• Eddy current nonferrous AL/CU separator
• Magnetic drive head pulley
• Magnetic drum separator
• Magnetic plate
• Magnetic cone separator
• Grate magnetic separator
• Magnetic filter chute
• transport and handling system such as belt conveyor/trommel drum screen/vibrator feeders
• other sorting type equipment:such as zigzag air classifier

Any require about magnetic metal separtion equipment,please kindly contact
